Specifications for

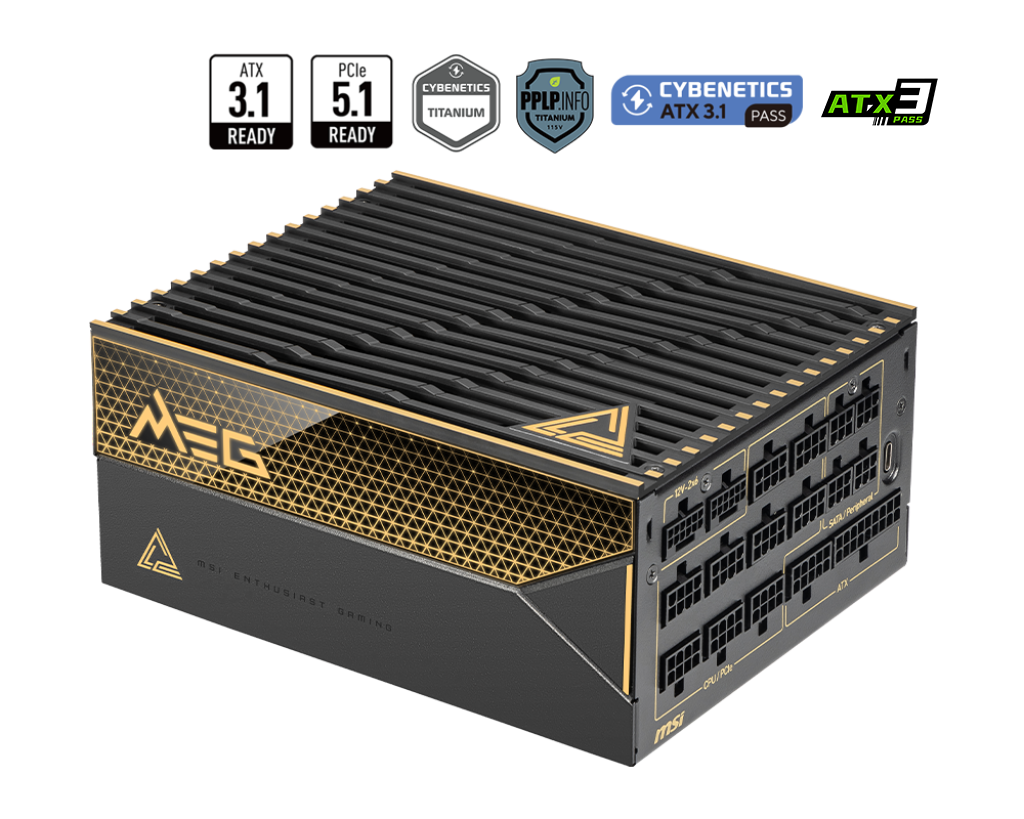

MEG Ai1600T PCIE5
Efficiency Rating
Efficiency Rating
80 PLUS Titanium (up to 94%)
Modular
Modular
Yes (Fully Modular)
Fan Size
Fan Size
135 mm
Fan Bearing
Fan Bearing
Double Ball Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
190 x 150 x 86 mm
PFC Type
PFC Type
Interleaved PFC
Input Voltage Range
Input Voltage Range
100-240
Power Watt
Power Watt
1600W
Power Excursion
Power Excursion
3840W (*up to 240% of the PSU's rated power for 100μs)
Input Frequency Range
Input Frequency Range
50~60 Hz
Protection
Protection
OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
2
PCI-E (6+2 pin)
PCI-E (6+2 pin)
9
SATA (15 pin)
SATA (15 pin)
8
MOLEX (4 pin)
MOLEX (4 pin)
8
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
2 (600W)
