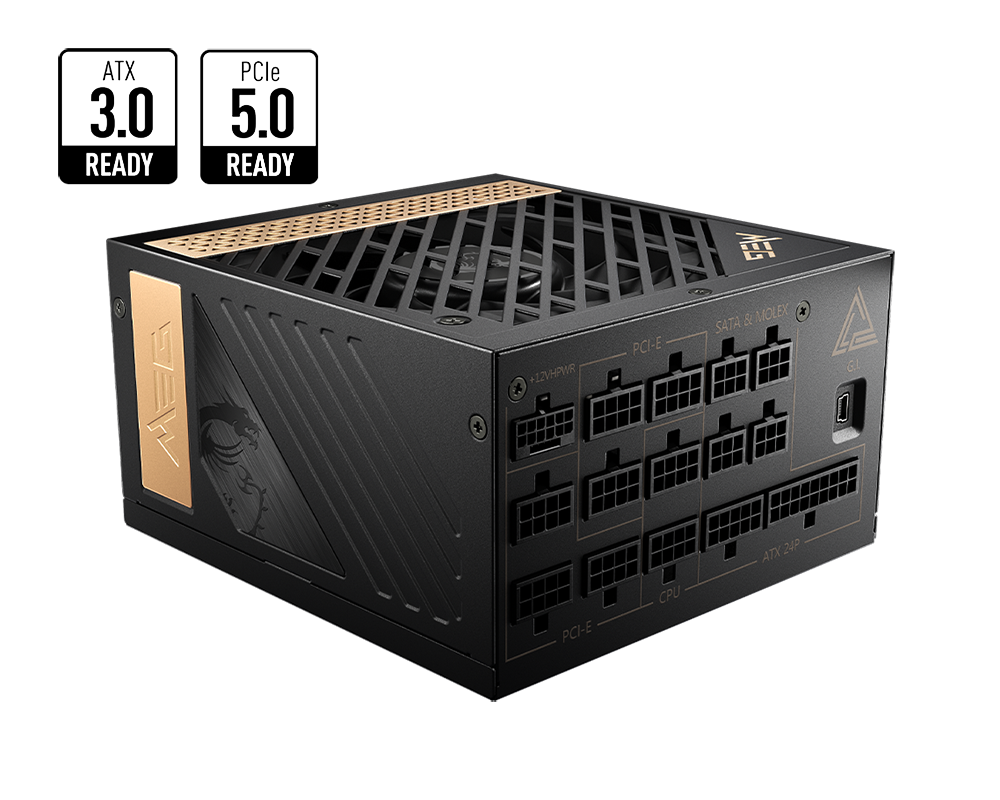

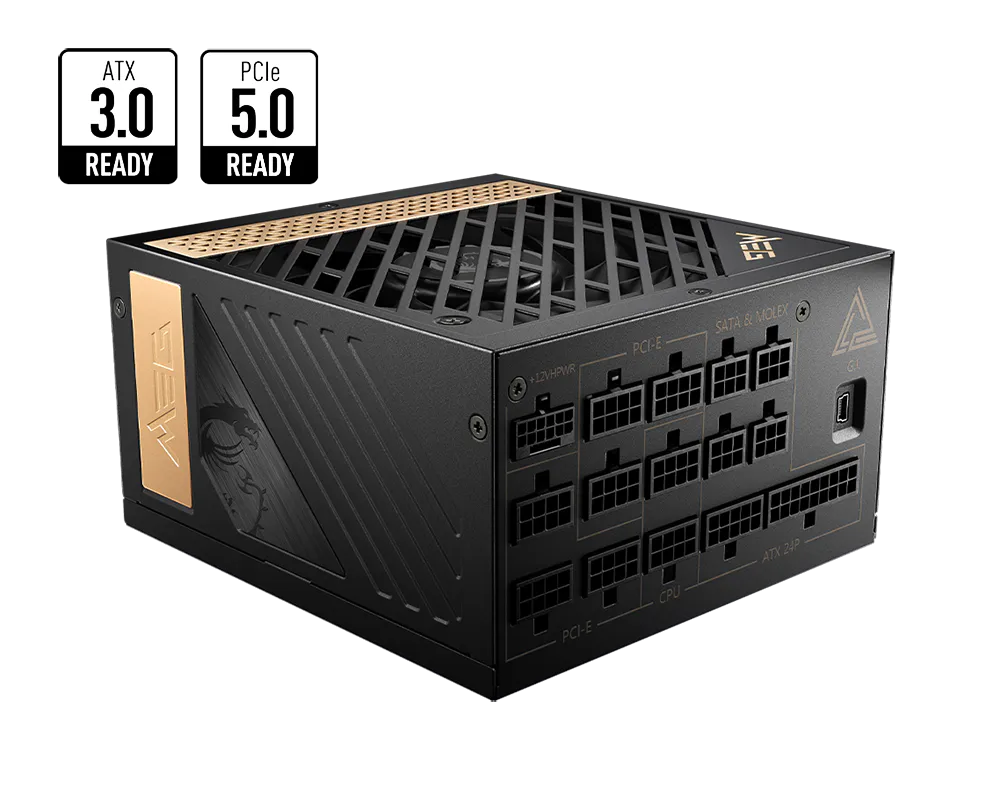

MEG Ai1300P PCIE5
產品規格
Datasheet
Efficiency Rating
Modular
Fan Size
Fan Bearing
Dimensions (DxWxH)
PFC Type
Input Voltage Range
Power Watt
Power Excursion
Input Frequency Range
Protection
ATX (24 pin)
EPS (8 pin)
EPS (4+4 pin)
PCI-E 5.0 (16 pin)
PCI-E (6+2 pin)
SATA (15 pin)
MOLEX (4 pin)
FDD (4 pin)
Efficiency Rating
80 PLUS Platinum (up to 92%)
Modular
Yes (full modular)
Fan Size
120 mm
Fan Bearing
Hydro Dynamic Bearing
Dimensions (DxWxH)
160 x 150 x 86 mm
PFC Type
Active PFC
Input Voltage Range
100-240~
Power Watt
1300W
Power Excursion
2600W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range
50~60 Hz
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
1
EPS (8 pin)
1
EPS (4+4 pin)
1
PCI-E 5.0 (16 pin)
1 (600W)
PCI-E (6+2 pin)
8
SATA (15 pin)
16
MOLEX (4 pin)
4
FDD (4 pin)
1
產品規格與配備可能會隨地區而有所不同,本公司另保留變更規格不另行通知權利。購買前請與當地經銷商確認產品規格。
