Specifications for

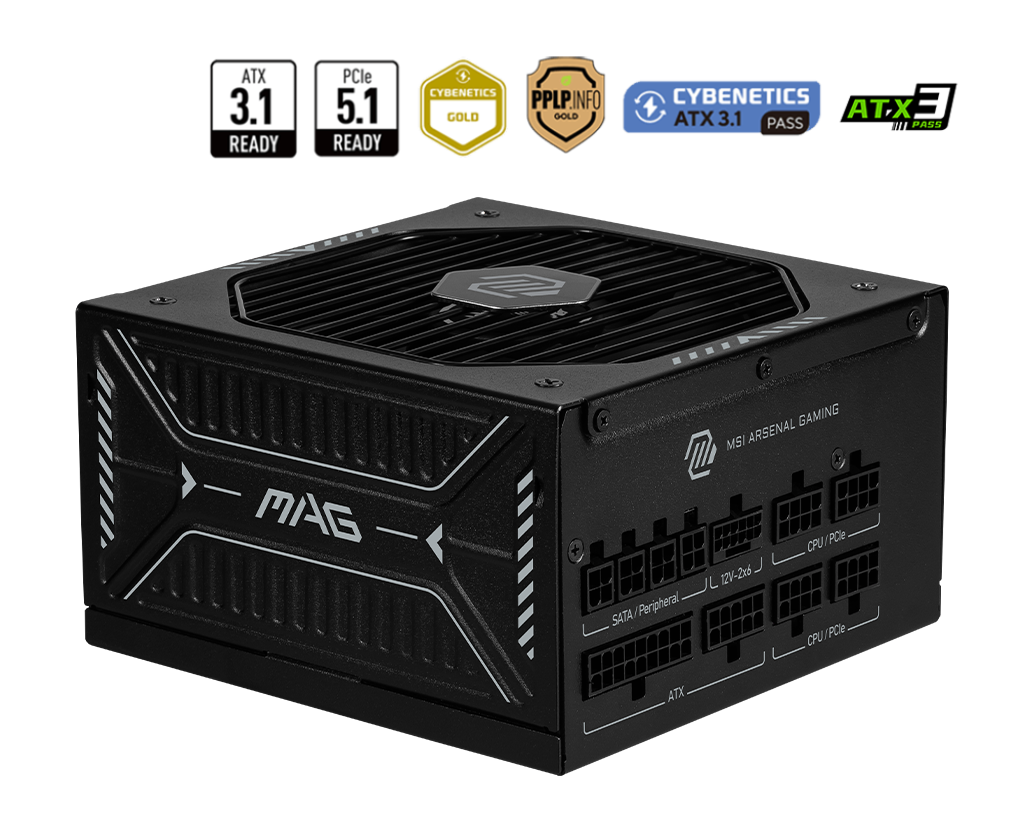

MAG A850GLS PCIE5
Model Name
Model Name
TORX FAN 12CM
Bearing Type
Bearing Type
Hydro-Dynamic Bearing
Air Flow
Air Flow
19.79 - 71.27 CFM
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
尺寸
尺寸
120mm x 120mm x 25.6mm
Rated Speed
Rated Speed
500 - 1800 ±15% RPM
重量
重量
169g
Connector
Connector
4-Pin PWM/DC
Life Expectancy
Life Expectancy
MTTF 150,000 Hours (25℃)
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Modular
Yes (full modular)
Fan Size
Fan Size
135 mm
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
150 x 150 x 86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100-240V~
Power Watt
Power Watt
850W
Power Excursion
Power Excursion
1870W (*up to 220% of the PSU's rated power for 100μs)
Input Frequency Range
Input Frequency Range
47-63 Hz
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
2
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
SATA (15 pin)
SATA (15 pin)
8
MOLEX (4 pin)
MOLEX (4 pin)
3
FDD (4 pin)
FDD (4 pin)
1
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (600W)
