Specifications for

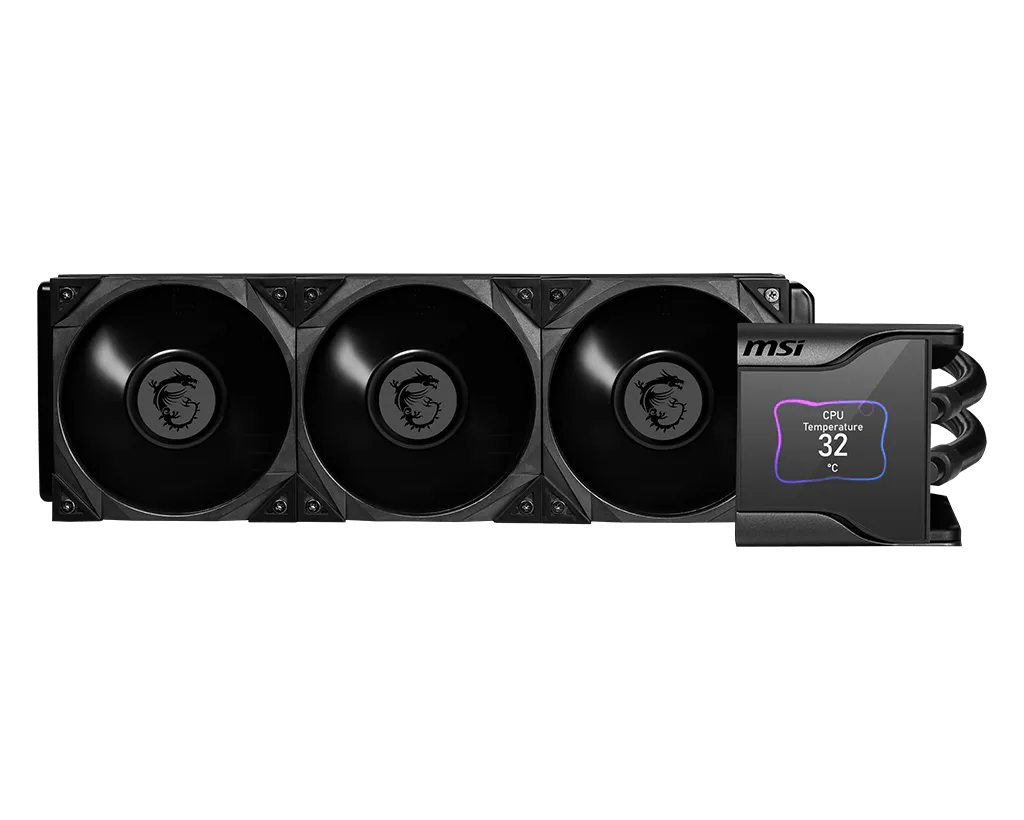

MEG CORELIQUID S360
Power Connector
Power Connector
SATA
Interface Connector
Interface Connector
USB 2.0 pin header
Panel Brightness
Panel Brightness
500 nits
Panel Resolution
Panel Resolution
320 x 240
Panel Type
Panel Type
IPS
Panel Size
Panel Size
2.4"
AMD Socket Support
AMD Socket Support
AM5 / AM4 / Socket TR4 / sTRX4 / SP3
Intel Socket Support
Intel Socket Support
LGA 1851/1700 / 1200 / 1151 / 1150 / 1155 / 1156
Block Dimensions (WxDxH)
Block Dimensions (WxDxH)
95 x 95 x 83.53 mm
Fan Connector
Fan Connector
4 pin PWM
Cold Plate Material
Cold Plate Material
Copper
Pump Connector
Pump Connector
4 pin PWM
Pump Speed
Pump Speed
2800 +/-300 RPM (PWM controlled)
Rated Voltage
Rated Voltage
12 VDC
Pump Power Consumption
Pump Power Consumption
4W
Air Pressure
Air Pressure
1.1 mmH2O
Pump Rated Current
Pump Rated Current
0.3A
Pump Noise Level
Pump Noise Level
21.2 dBA
Air Flow
Air Flow
19.79 - 71.27 CFM
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Light
Light
Addressable RGB
Life Expectancy
Life Expectancy
MTTF 150,000 Hours (25℃)
Fan Included
Fan Included
Addressable RGB Fan x 1
重量
重量
169g
Cable Length (PWM Cable)
Cable Length (PWM Cable)
350 mm / 13.78 inches
PWM Mode
PWM Mode
Yes
Fan Power Consumption
Fan Power Consumption
4.8 W (MAX)
尺寸
尺寸
120mm x 120mm x 25.6mm
Fan Rated Current
Fan Rated Current
0.4 A (MAX)
Fan Life Expectancy
Fan Life Expectancy
50,000 Hours
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
Fan Bearing
Fan Bearing
Hydro-Dynamic Bearing
Fan Air Flow
Fan Air Flow
56.2 CFM
Fan Dimensions (WxDxH)
Fan Dimensions (WxDxH)
120 x 120 x 27.5mm / 4.7 x 4.7 x 1.08 inches
Bearing Type
Bearing Type
Hydro-Dynamic Bearing
Number of Fans
Number of Fans
3
Water Cooling Tube Material
Water Cooling Tube Material
Black Rubber + Mesh
Radiator Material
Radiator Material
Aluminum
Radiator Dimensions (WxDxH)
Radiator Dimensions (WxDxH)
394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches
Radiator Size
Radiator Size
360 mm
Power Supply
Power Supply
Standard ATX
Driver Bays
Driver Bays
2 x 3.5" (compatible with 2.5”) + 2 x 2.5"
Front I/O Ports
Front I/O Ports
1 x USB 3.0 + 2 x USB 2.0 + HD Audio / Mic
